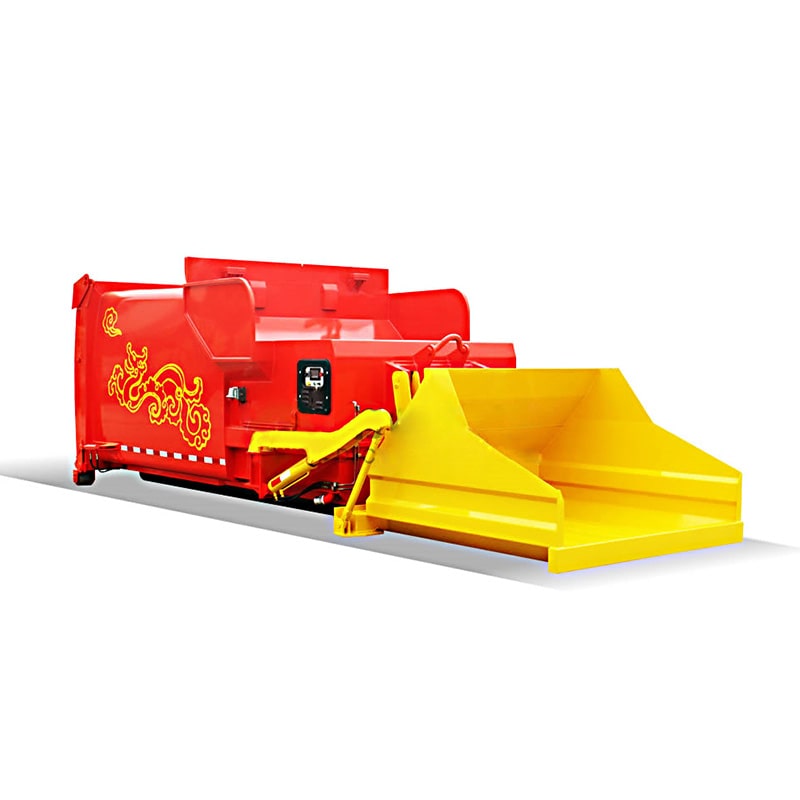

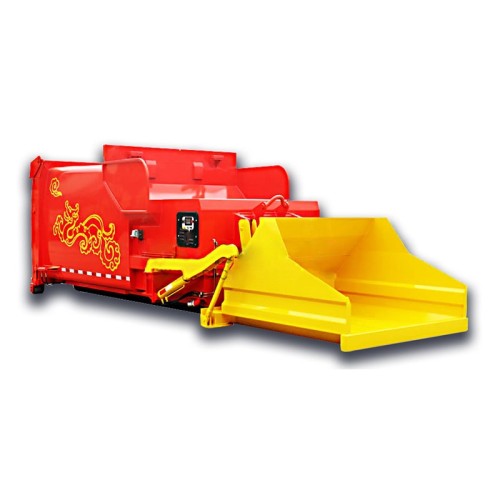

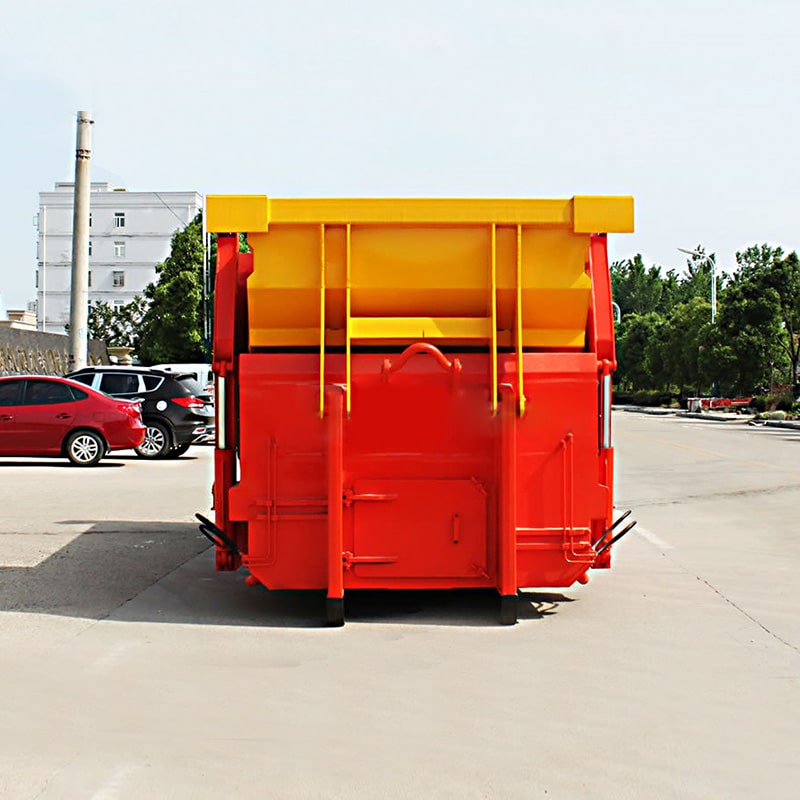

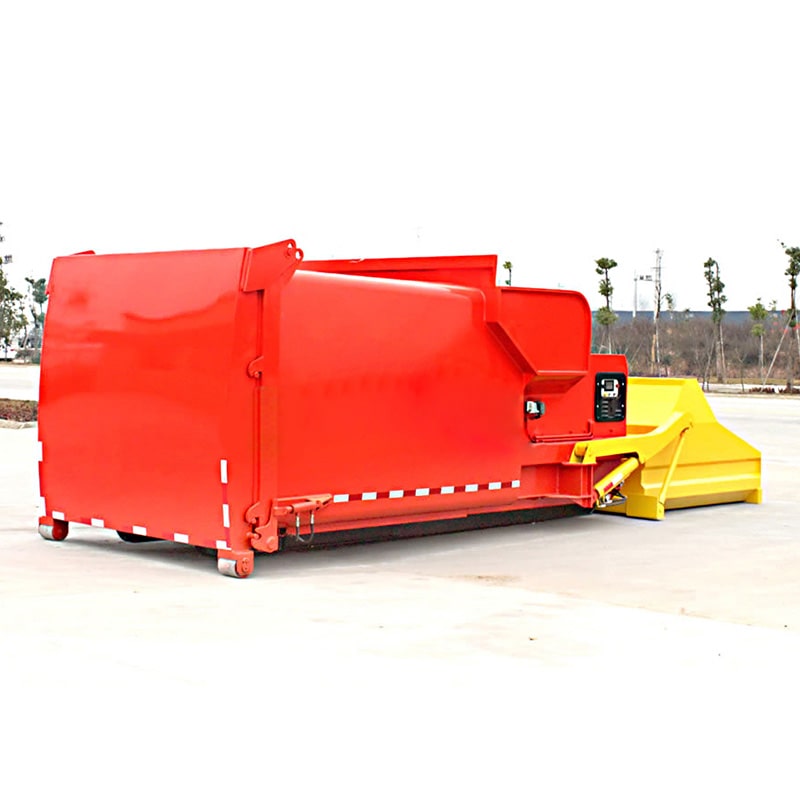

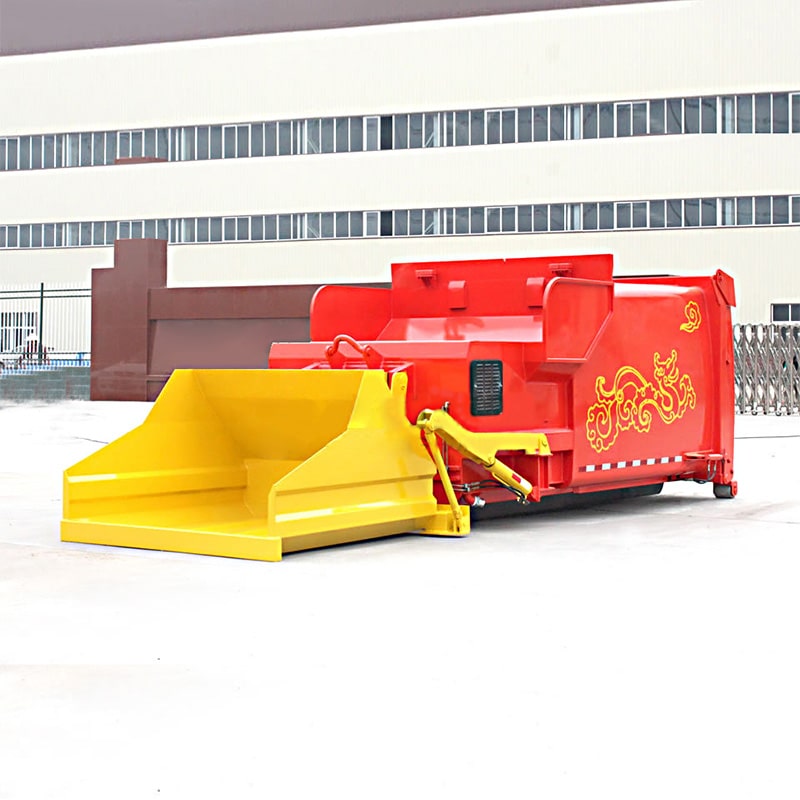

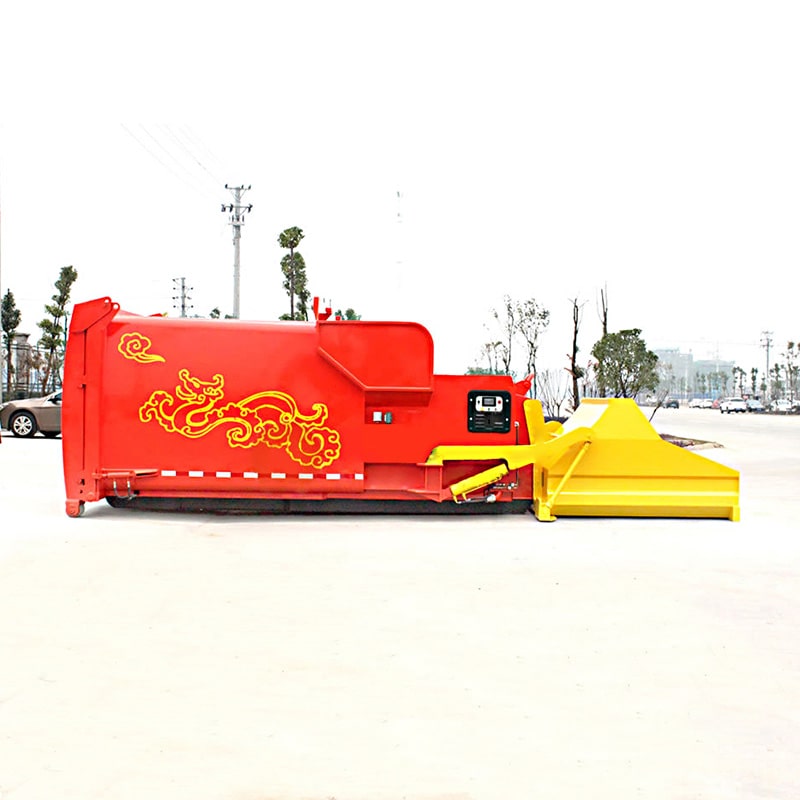

Hook arm garbage truck detachable compressed garbage truck

Technical
Bottom beam width mm	1060
Box Volume (m3)	15/16
Compression chamber single cycle stroke volume (m3)	1.8
Compression head type	Type M
Control mode	Touch + remote control
Curb Weight(Kg)	6000
Dimensions: LWH(mm)	5900×2550×2450
Door opening method after discharge	Quick-change hydraulic fittings
Effective stroke of push head(mm)	1700
Guide wheel base mm	2200
Hopper feeding width(mm)	2320
Hopper type	Double-cylinder four-bar mechanism
Hopper volume(m3)	3.5
Hydraulic System Pressure Rating (Mpa)	22
Lifting lug center height(mm)	1570
Maxim Compresiffors (g)	Maxim Comp-Res Forss (G)
Maximum Compressive Force(KN)	320
Motor power(Kw)	5.5
Operating noise dB	≤65
power supply	380V.three-phase.15A, waterproof design
Pusher Cycle Time(S)	≤42
Supporting vehicles	Rear double axle chassis 20 ton hook arm garbage truck
The height of the equipment inlet is mm	1650
The maximum lifting weight of the hopper is kg	1500
Theory: Amount of garbage processed by a single machine (m3/h)	＞92

Tags:

ls your company a factory or trading company?

We are a leading manufacturer of special trucks, tankers, trailers, and spare parts in China Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles
What is your terms of payment?

T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the balance
What is your terms of delivery?

EXW, FOB, CFR, CIF, DAF, DDU
How about your delivery time?

Generally, it will take 20 to 30 days after receiving your advance payment. The specific deliver time depends on the items and the quantity of your order
Can you customize the product according to my requirements?

Yes. We have professional R&D team, we can produce the product exactly according to your requirements
What is the price of your product?

We are direct sales from the factory, so the price is very competitive. Different products have different prices. The price also depends on your special needs. To know the exact price, please contact us
Do you test all your goods before delivery?

Yes, we have 100% test before delivery
What service can l get from you?

We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. lf you need, we will also supply original spare parts and you just need to pay the freight
